Food Packaging Industry 食品包装行业：零食包装袋、真空保鲜袋、食品铝箔袋、调料包装袋、速冻食品外袋
Daily Chemical & Beauty Industry 日化美妆行业：洗护用品包装袋、面膜袋、美妆小样袋、日用品复合袋
Pharmaceutical Industry 医药行业：药品内包装袋、医用耗材袋、药械独立包装、医药追溯打标检测
Electronic Packaging Industry 电子包装行业：电子配件防静电袋、数码产品包装袋、小型配件密封袋
Packaging & Printing Factory 包装印刷行业：各类定制软包装袋、成品袋分页打标复检、批量包装品质检分拣
中文参数项目 | 中文详细参数 | English Specifications | Detailed Data |
|---|---|---|---|

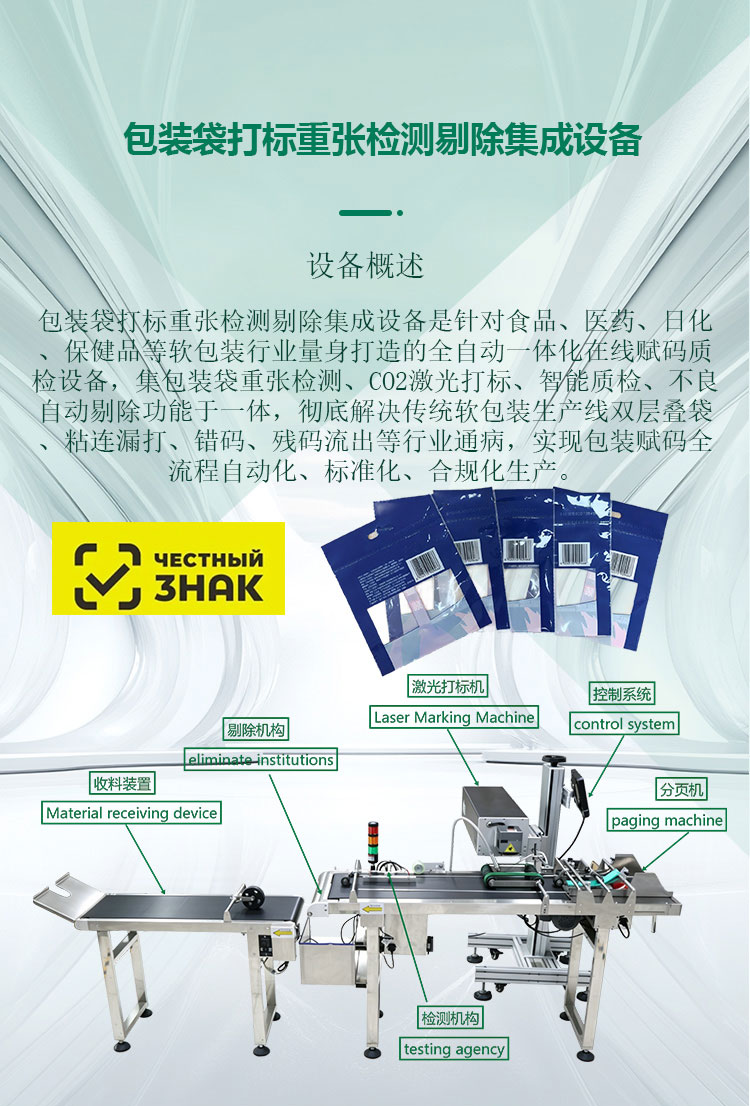

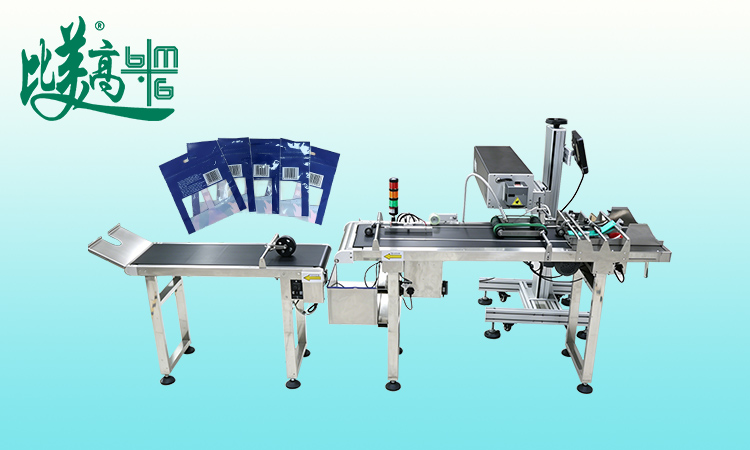

设备名称 | 包装袋分页打标重张检测集成设备 | Equipment Name | Packaging Bag Paging Marking & Double-sheet Detection Integrated Machine |

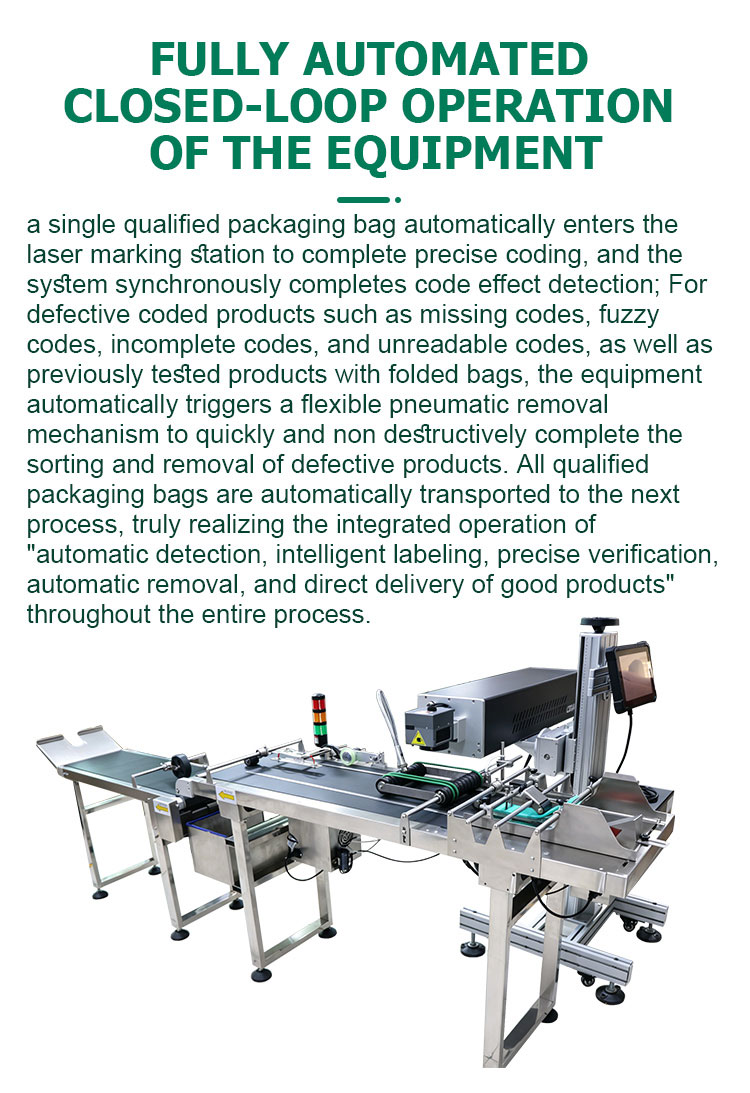

核心功能 | 自动分页、激光打标、重张检测、漏标检测、重标检测、不良自动剔除、计数统计 | Core Functions | Automatic paging, laser marking, double-sheet detection, missing mark/duplicate mark detection, defective rejection, counting statistics |

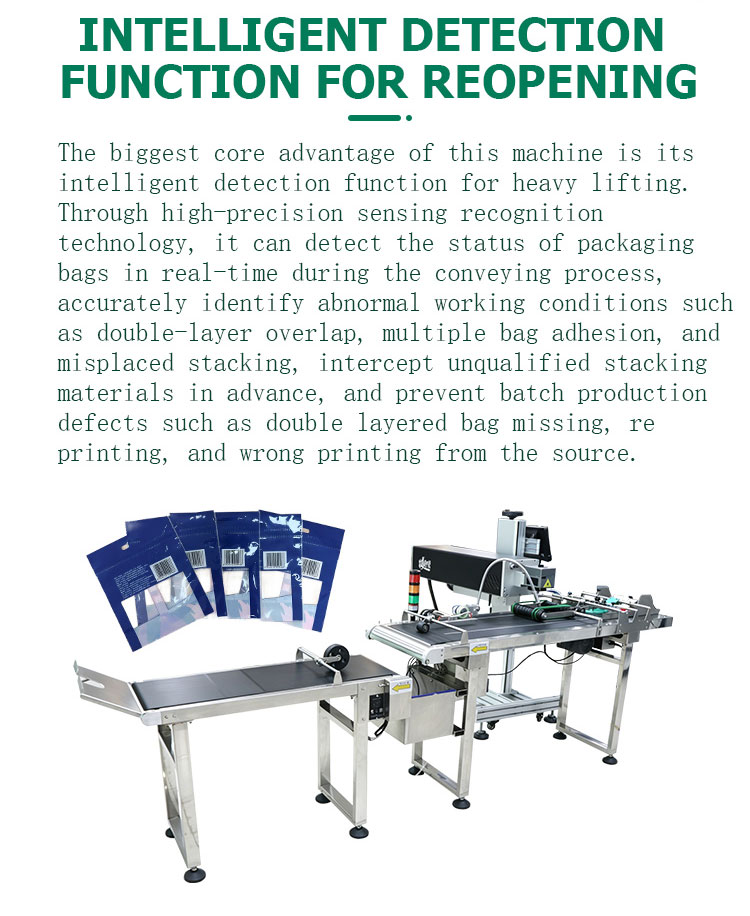

检测项目 | 包装袋重张/叠张、无标漏打、重复打标、打标歪斜、打标模糊、位置偏移 | Detection Items | Double/overlapped bags, missing marking, duplicate marking, marking skew, blurry marking, position offset |
检测精度 | ±0.1mm，重张识别准确率99.9% | Detection Accuracy | ±0.1mm, double-sheet recognition accuracy 99.9% |
工作速度 | 0-350张/分钟，支持无级调速，适配高速产线 | Working Speed | 0-350 pcs/min, stepless speed regulation, suitable for high-speed production lines |
视觉配置 | 工业高清CCD相机+定制光学光源，抗反光、抗干扰，适配塑料/复合包装袋 | Vision Configuration | Industrial HD CCD camera + customized optical light source, anti-reflection & anti-interference, suitable for plastic/composite packaging bags |

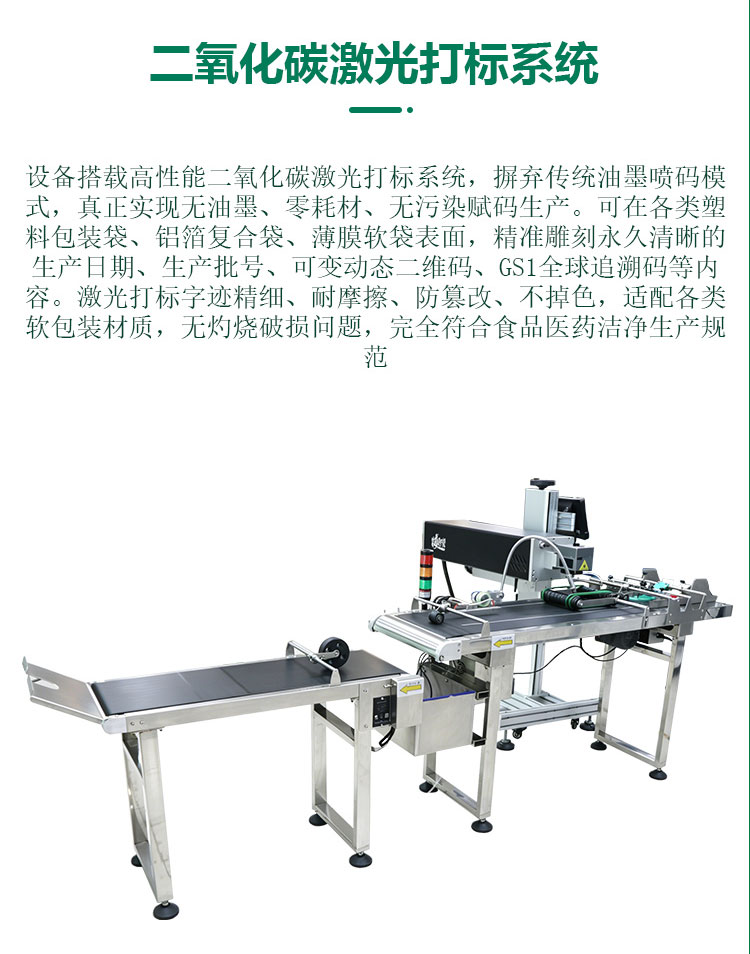

打标配置 | 光纤激光打标机，打标清晰、耐摩擦、无耗材 | Marking Configuration | Fiber laser marker, clear & wear-resistant marking, no consumables |
剔除方式 | 高速气动精准剔除，不伤袋体、无物料卡顿 | Rejection Mode | High-speed pneumatic precise rejection, no bag damage, no material jamming |
操作系统 | 10寸智能触摸屏，参数一键设置、自动计数、不良数据存储 | Operation System | 10-inch intelligent touch screen, one-click parameter setting, automatic counting, defect data storage |

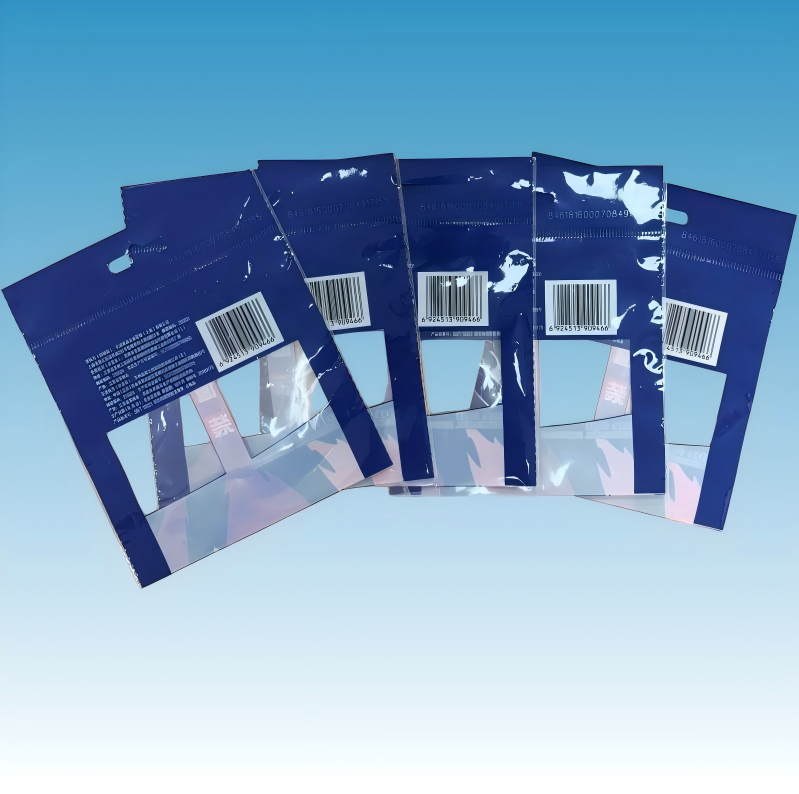

适配产品 | 食品包装袋、日化包装袋、医药包装袋、塑料复合袋、平口袋、自封袋等 | Applicable Products | Food packaging bags, daily chemical bags, pharmaceutical bags, plastic composite bags, flat bags, self-sealing bags, etc. |
工作电压 | 220V 50Hz 单相市电 | Working Voltage | 220V 50Hz Single-phase power |
机身材质 | 工业铝合金+钣金烤漆，防尘防锈、结实耐用 | Body Material | Industrial aluminum alloy + painted sheet metal, dust-proof, rust-proof and durable |
运行环境 | 常温车间0-45℃，适配常规生产车间环境 | Working Environment | Normal temperature workshop 0-45℃, suitable for conventional production environment |
定制服务 | 支持袋体尺寸、打标内容、检测速度、功能模块非标定制 | Customization Service | Support non-standard customization of bag size, marking content, detection speed and functional modules |
适用行业与品类
咨询包装袋分页打标重张检测集成设备
